CWC FLUID DELIVERY SYSTEM – FDS-1

Fluid Delivery System (FDS) – Optimized for Stainless Steel Weld Cleaning

The Fluid Delivery System (FDS) is an advanced solution engineered to streamline and enhance the weld cleaning process for stainless steel applications. Purpose-built for high productivity environments, the FDS eliminates the need for manual brush dipping by delivering cleaning fluid directly through the brush—maximizing efficiency and minimizing operator fatigue.

At the core of the system is a durable 2.5-gallon tank, capable of holding a full container of weld cleaning solution. This high-capacity reservoir supports extended periods of uninterrupted operation, significantly reducing downtime and increasing throughput.

The system operates using standard shop compressed air with an optimal pressure range of 3–5 psi. This low-pressure configuration creates a safe, user-friendly, and maintenance-light system that avoids the complexity of pumps, motors, or moving mechanical parts—resulting in fewer breakdowns and a lower total cost of ownership.

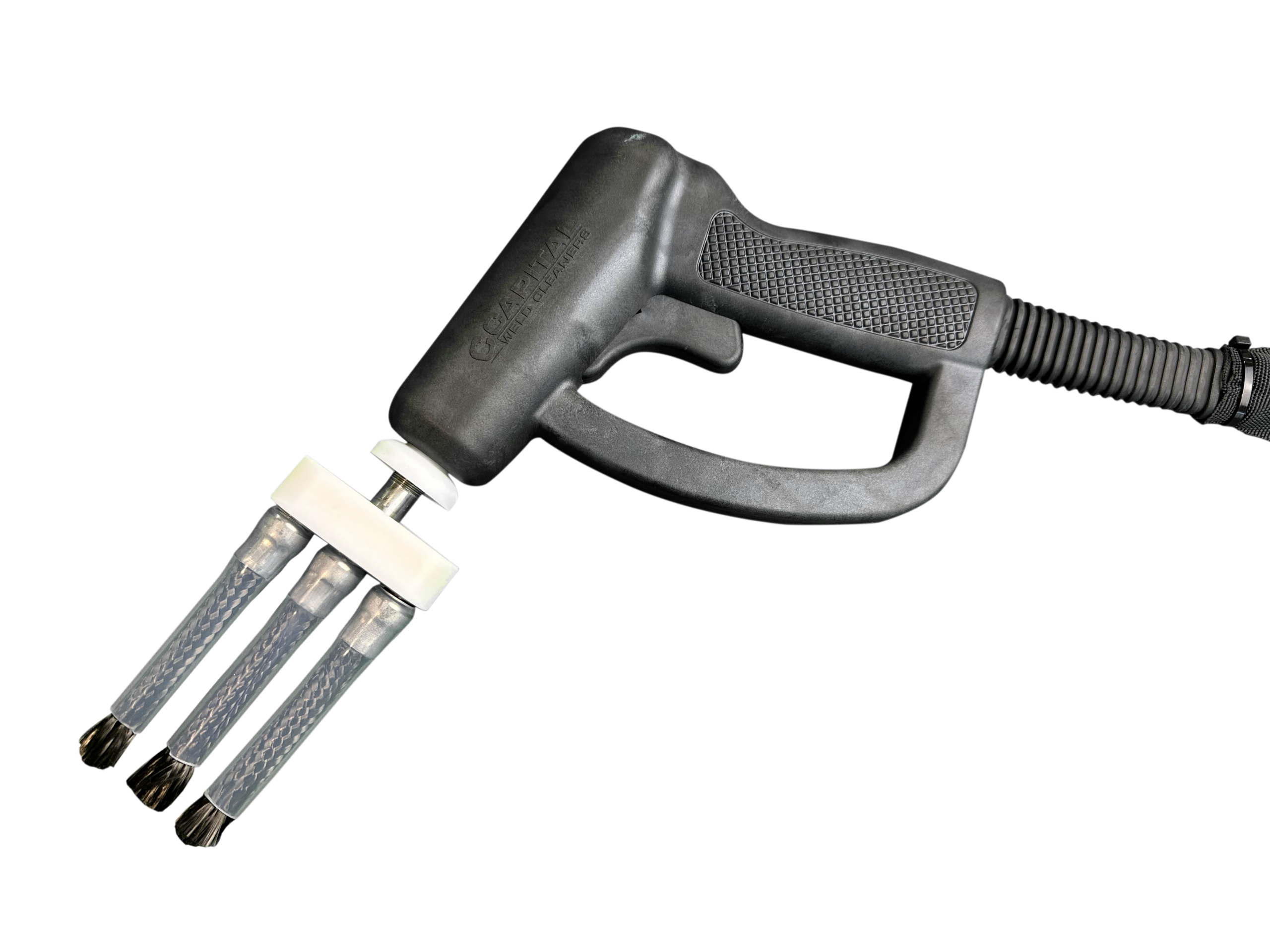

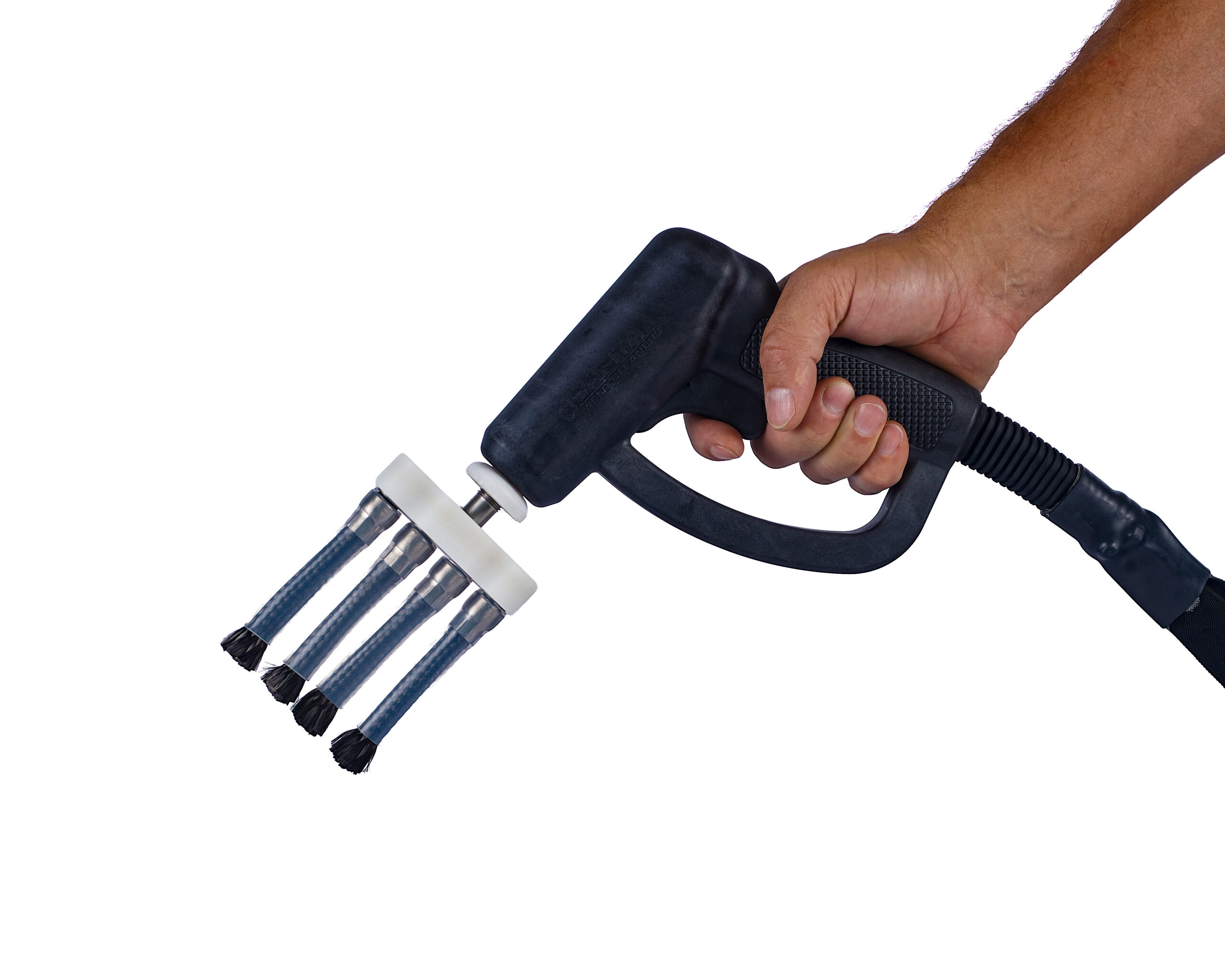

Once connected to shop air and filled with cleaning fluid, the FDS allows fluid flow to be precisely controlled by simply squeezing the trigger on the cleaning gun. This intuitive design empowers the operator to adjust fluid output based on part geometry and cleaning position, ensuring optimal fluid use and reducing waste.

Key Advantages:

• Operator-Controlled Dispensing: Fluid is delivered only when needed, enabling precision cleaning and conserving solution.

• Low Maintenance Design: No pumps, motors, or moving components reduce the risk of failure and service interruptions.

• Full-Size Reservoir: 2.5-gallon capacity supports hours of continuous cleaning, ideal for high-volume operations.

• Enhanced Productivity: Compatible with multi-brush adapters when used with CW110 or CW200 machines, making it ideal for large-scale cleaning and passivation tasks.

• Easy to Maintain: The delivery gun is fully serviceable and can be disassembled and cleaned onsite with minimal tools or downtime.

• Improved Efficiency Over Competing Systems: Unlike smaller, pump-driven systems that operate continuously upon brush contact, the FDS allows precise control of flow and pressure, reducing unnecessary fluid use and maintenance issues.

Whether in fabrication shops, field repair operations, or large-scale passivation projects, the FDS offers a robust, reliable, and efficient fluid delivery solution designed to meet the demands of modern stainless steel weld cleaning.

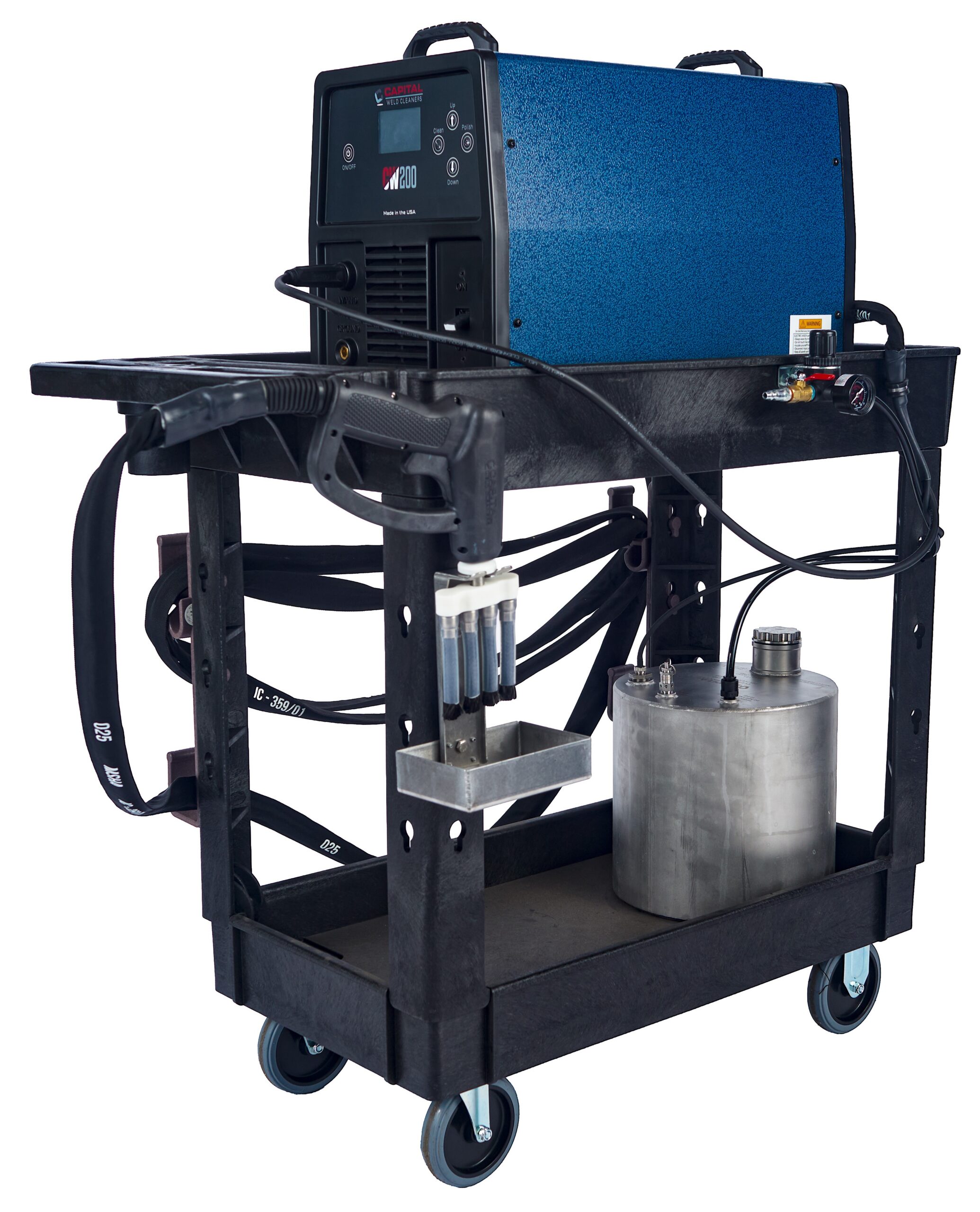

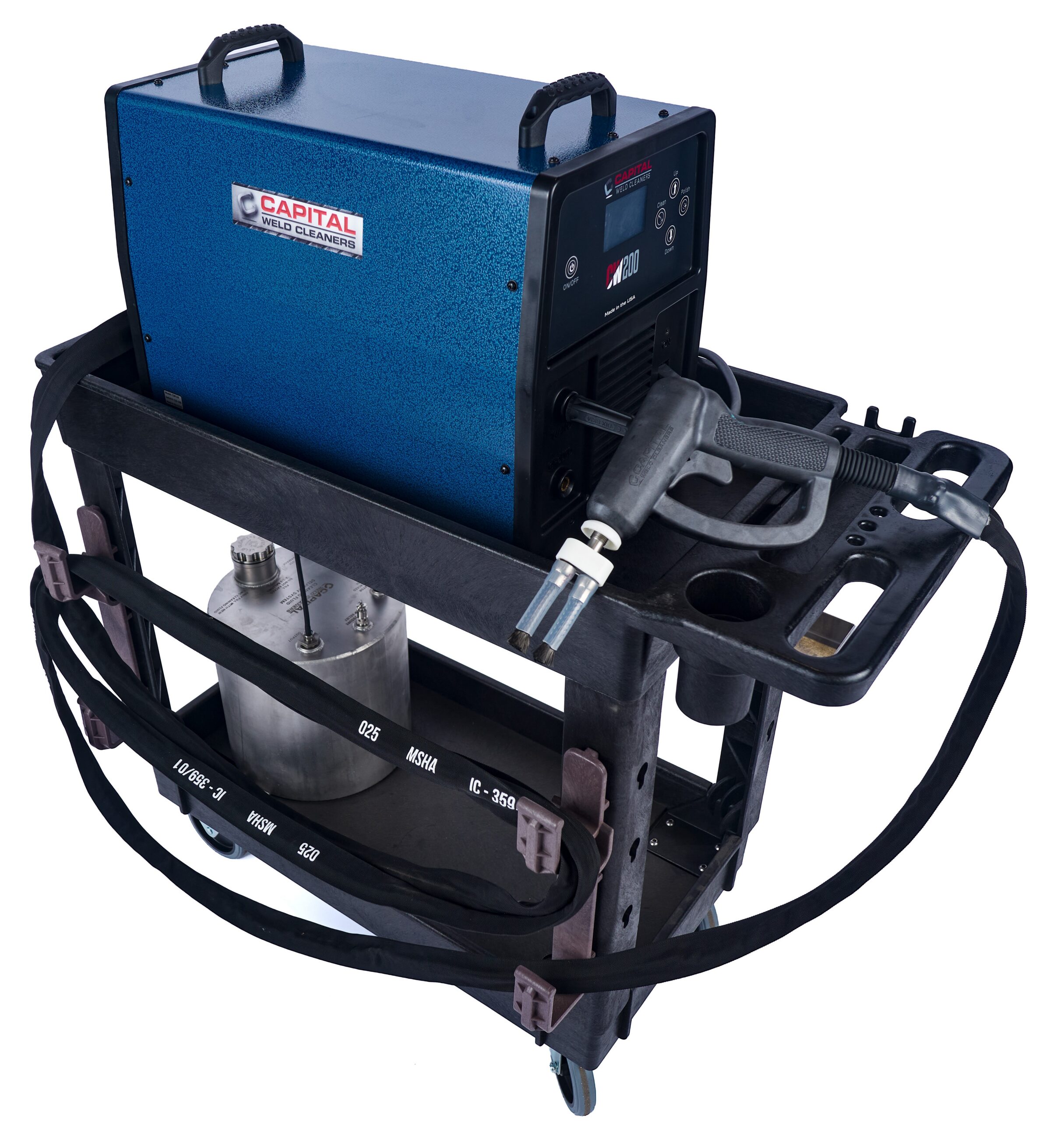

System Includes:

1 – 24′ Wand assembly with advanced applicator gun.

1 – 2-1/2 gallon tank and regulator

1 – Multi-purpose cart

1 – Gun holder – cart mounted

1 – 2-pack of gun brushes (GB2T)

1 – 2 Brush adapter (For CW Series machines)

(Machine not included)

The Fluid Delivery System allows for constant, high productivity cleaning and can be coupled with any CWC machine.

Designed specifically for the CW Series of machines but is compatible with the 1X30, 1X50, 2X40 and 2X80 machines.  System can be upgraded to run 2 guns off of 1- 2X80 machine.  It can also accommodate 2 – 1X50 machines running off the same pressure tank.  System uses our Applicator gun flow through brushes.

Brush Part #’s:

GB2T – 2-pack

GB5T – 5-pack

GB50T – 50-pack

GBL2T – 2-pack Large

GBL5T – 5-pack Large

GBL50T – 50-pack Large

This system can also be used with all cleaning solutions.

Gun holders can be purchased separately to mount to a work table or remote area.
